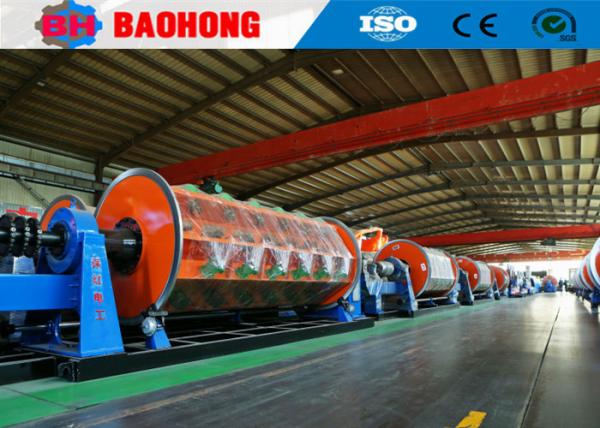

JLK Rigid Frame Stranding Machine wire and cable strander line
1. Application
The machine is mainly used for stranding and compacting of copper or aluminum sector or round conductor, as well as pre-spiral sectorconductor etc.Reinforcement is added to the front support of the main machine to increase stability. The wire die base is connected to the front support of the main machine, which has stronger integration and better mechanical rigidity.
2. Features
2.1 The actual rotating speed, capstan linear speed and other operating parameters of each strander can be displayed visually.
2.2 Whole structure will be machined on the big horizontal lathe.
2.3 High efficiency and speed. Cage max speed 253 RPM. Max line speed 62.3 m / min.
2.4 Adopt cabinet type touch screen operation desk , which is convenient for operation and beautiful in form.
2.5 Surface polishing of capstan wheel.
2.6 The meter wheel is connected with the main control cabinet to set the meter for stopping.
3. Technical Parameters
| Model (Rigid Stranding Machine) | JLK-500 | JLK-630 | JLK-710/720 |
| Diameter of single wire | Copper | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm |
| Aluminum | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm |
| Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm |
| Stranding Pitch | 6 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm |
| 12 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm |
| 18 Bobbin Stranding Cage | 44-793 mm | 63-1056 mm | 57-1012 mm |
| 24 Bobbin Stranding Cage | 51-924 mm | 71-1246 mm | 66-1190 mm |
| 30 Bobbin Stranding Cage | 57-1028 mm | 87-1553 mm | 79-1403 mm |
| Rotating Speed | 6 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min |
| 12 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min |
| 18 Bobbin Stranding Cage | 208.5 r/min | 155 r/min | 142.6 r/min |
| 24 Bobbin Stranding Cage | 179 r/min | 130.1 r/min | 122.3 r/min |
| 30 Bobbin Stranding Cage | 161.8 r/min | 115.9 r/min | 102.7 r/min |
| Capstan | Capstan Wheel Diameter | 2000 mm | 2000 mm | 2000 mm |
| Maximum Haul-off Force | 30 T | 30 T | 40 T |
| Pre-spiral Device | Pitch | 500-2500mm | 500-2500mm | 500-2500mm |
| Motor Power | 90-180 KW | 110-180 KW | 130-180 KW |
| Bobbin Size | 500*375*127 | 630*475*127 | 710*530*127 |
| Center Payoff Bobbin | 1600*800*80 | 1600*800*80 | 1600*800*80 |
| Take-up Bobbin | 2500*1500*125 | 2500*1500*125 | 3150*1900*160 |
| Maximum Haul-off Linear Speed | 69 m/min | 69 m/min | 62 m/min |
| Central Height | 1000 mm | 1100 mm | 1100 mm |
4. Photos
5. Packing photo
6. Our factory and company introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
