Industrial Cable &Wire Skip Type Stranding Manufacturing Machines 630/1+6

  • 1
  • 2

Brand Name : BH

Model Number : JGB

Certification : ISO,CE

Place of Origin : China

MOQ : 1 set

Price : By Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 30 sets per month

Delivery Time : 90 days

Packaging Details : Seaworthy Packing For Export

Name : Industrial Cable &Wire Skip Type Stranding Manufacturing Machines 630/1+6

Drums : 500 / 630/700/800

Material : Steel & Carbon bow

Rotating Speed : 1000 r/min

Low-Voltage Electrical Parts : Scheinder

Bearing brand : NSK

After-sales Service : Available

Color : Customer request

Contact Now

Industrial Cable &Wire Skip Type Stranding Manufacturing Machines 630/1+6

1. Application

This machine is mainly used for stranding of copper wire or Al wire, ACSR, and steel stranded wire.
2. Technical parameters
Model (Skip Stranding Machine) JGB-630(500) JGB-700 JGB-800
Diameter of single wire Copper φ1.8-5 mm φ2-5 mm φ2.5-5 mm
Aluminum φ2.0-5 mm φ2.5-5 mm φ3.0-5 mm
Galvanized steel wire φ1.0-4.0 mm φ1.2-4.0 mm φ1.5-4.0 mm
Maximum stranded conductor OD φ35-55 mm φ35-55 mm φ35-55 mm
Stranding Pitch 6 Bobbin Stranding Cage 31.1-235.0mm 31.1-235.0mm 31.1-235.0mm
Max. Rotate Speed 6 Bobbin Stranding Cage 1000 r/min 800 r/min 700 r/min
Capstan Capstan Wheel Diameter 1200 mm 1400 mm 1400 mm
Maximum Haul-off Force 10 T 10 T 12 T
Motor Power 37 KW 45 KW 55 KW
Bobbins 630*475*127 710*530*127 800*600*127
Center Pay-off Bobbin 630*475*127 710*530*127 800*600*127
Take-up Bobbin 1250*950*80 1600*1180*80 1600*1180*80

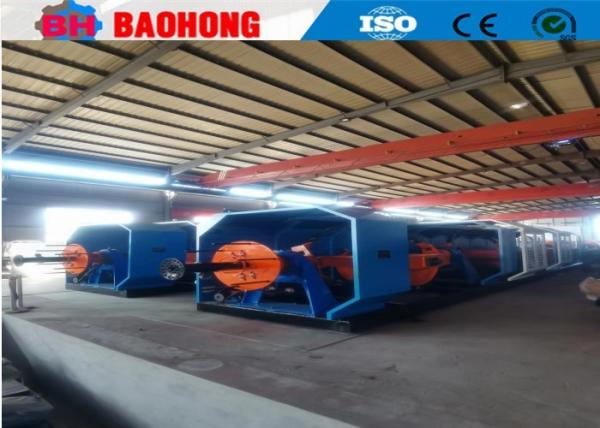

3. Photos

Industrial Cable &Wire Skip Type Stranding Manufacturing Machines 630/1+6

Industrial Cable &Wire Skip Type Stranding Manufacturing Machines 630/1+6

4. Packing photos

Industrial Cable &Wire Skip Type Stranding Manufacturing Machines 630/1+6

5. Our factory and introduction

Industrial Cable &Wire Skip Type Stranding Manufacturing Machines 630/1+6

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Located in Hejian Economic Development Zone, Hebei Province, our company is the largest professional manufacturer of stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
